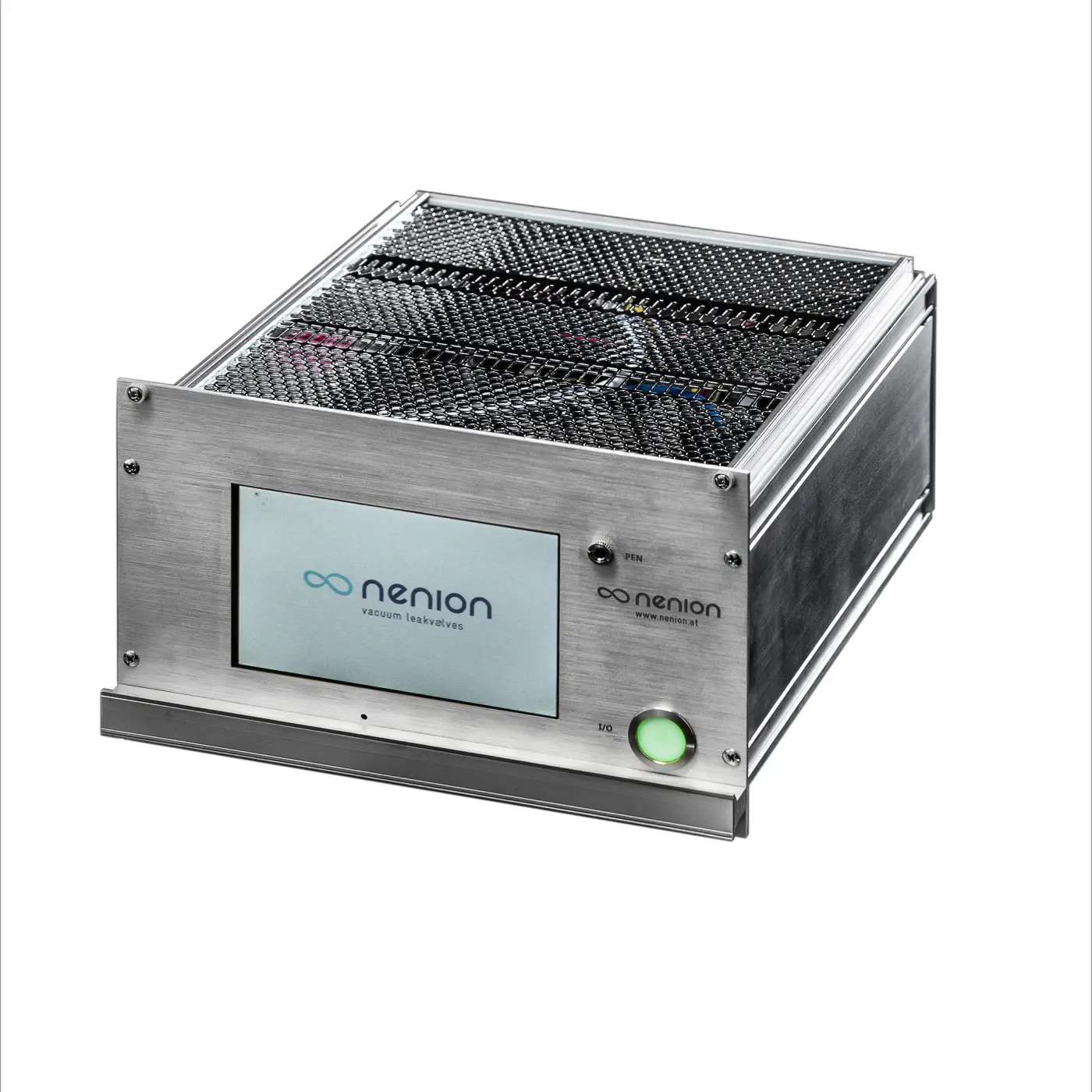

Steppermotor control unit
Controller for steppermotor driven Leakvalves .
Interfaces::
USB, Ethernet with Modbus,
direct Control or
Compatibility to the previous nenion (VSE) RS-232 Interface.
Three Analogue Inputs. Confugurable to omplement meausring devices, such as Pirani, etc
Touch Input
Closed Loop Control with connected sensors (pressure, flow)
Programable Scripts.
230 VAC or 24 VDC Version with external power supply available.
- Description
- Technical Specifications
- Downloads
Description
| Technical Specifications | |
|---|---|
| Housing Type | 3HE 227T |
| Weight | 2.7 kg |
| Ambient Temperature | 5°C bis 45 °C |
| Relative Air Humidity | 15% bis 85% (keine Kondensation) |
| Max. Working Altitude | 1000m, von 1000m bis 2000m nur 40°C Umgebungstemperatur erlaubt |
| Electrical: | |
| Mains Voltage | 230VAC /110VAC 50 Hz 24 VDC available |
| Mains Power | 150 W |
| Fuse | 2 x 2A |
| Motor Voltage | 24VDC |
| Motor Power | 80 W |
| Actuator: | |
| Time to travel across Stroke | 14s |
| Steps / Strike | 1,000,000 |
| Interfaces | USB Ethernet Modbus Analog |
| Input | Touch-Screen |
| Operation Modes | Manual Closed Loop Control Scipt-Commands |
