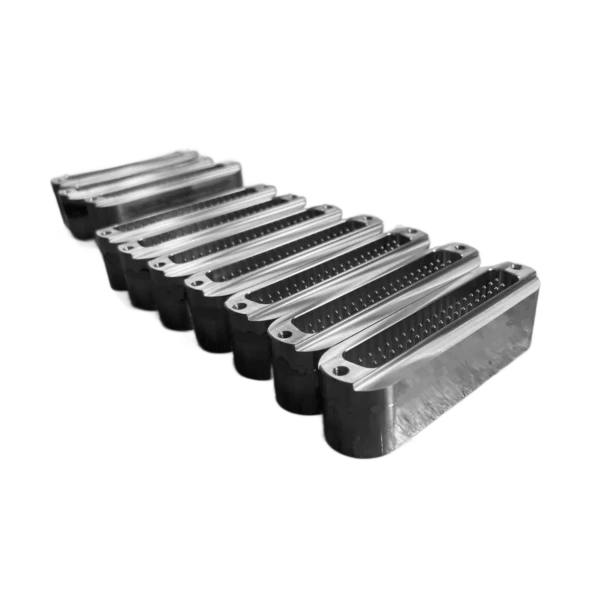

SUB-D WELD
| FLANGE | Order number | DESCRIPTION |
|---|---|---|
| WELD | 240009 | MIL-C-24308 sub-D male/male feedthrough, 9 pin, weldable |
| WELD | 240015 | MIL-C-24308 sub-D male/male feedthrough, 15 pin, weldable |
| WELD | 240025 | MIL-C-24308 sub-D male/male feedthrough, 25 pin, weldable |
| WELD | 240037 | MIL-C-24308 sub-D male/male feedthrough, 37 pin, weldable |
| WELD | 240040 | MIL-C-24308 sub-D male/male feedthrough, 40 pin, weldable |
- Description
Description
Technical specifications:
Compliance: MIL-C-24308
Leak rate UHV: <5×10-10 mbar l/s He
Leak rate HV: <1×10-9 mbar l/s He
Insulator: PEEK® (Vespel® as option)
Working temperature: -40°C +250°C
Conductors: Gold plated NiFe
Shell: AISI 304L
Voltage: 800 V DC
Current: 5 Amp
Conductor diam.: 1 mm
Very high resistance to thermal and mechanical shocks.
Gamma and ß radiation resistance (Vespel)
